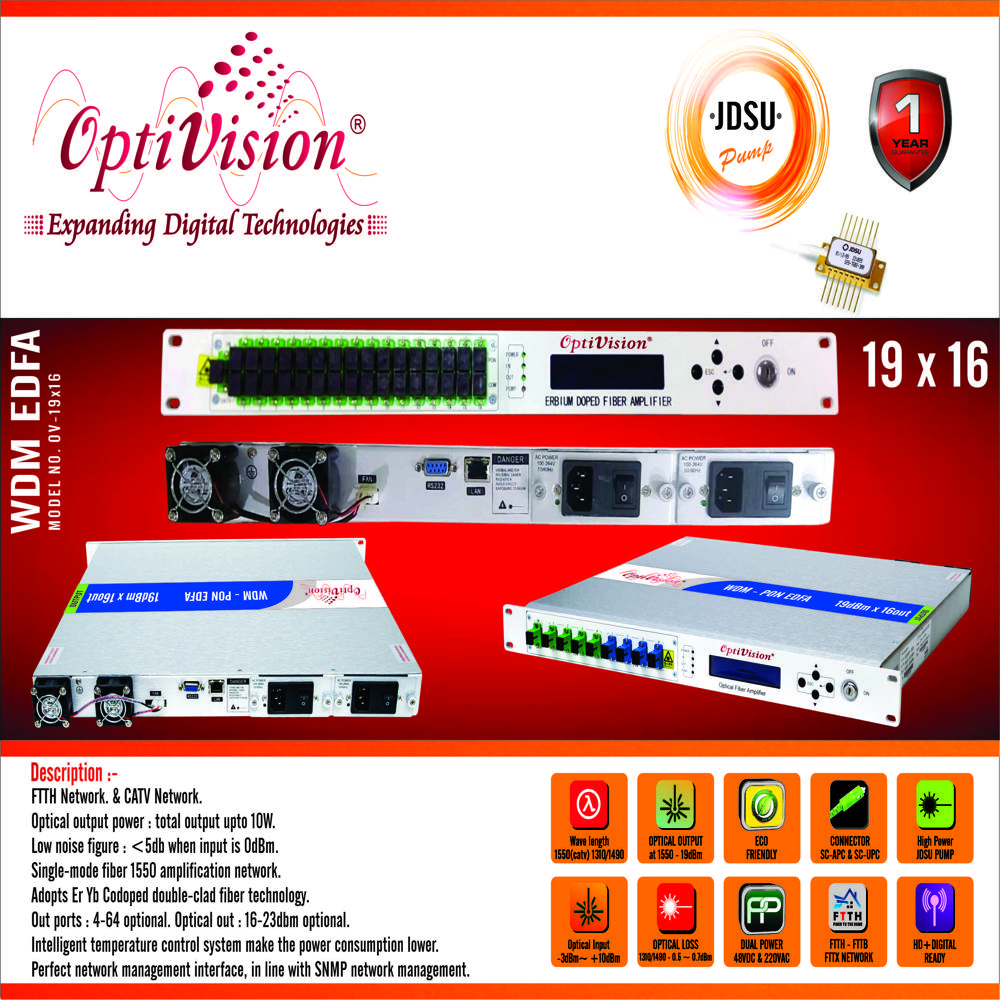

WDM PON EDFA : 19x16

Product Description

1. General Overview

• Product Name: PON WDM EDFA 19x16 with Dual Supply & Dual Input

• Model Number: OV-19x16-D

• Application: Designed for high-capacity Passive Optical Network (PON) systems, supporting Wavelength Division Multiplexing (WDM) applications.

• Key Features:

  • 19-channel input, 16-channel output configuration.

  • Dual power supply for redundancy and uninterrupted operation.

  • Dual input for signal redundancy and failover.

  • Integrated JDSU pump laser for high reliability and performance.

2. Optical Specifications

• Wavelength Range:

  • Input: 1550 nm (C-band) for upstream signals.

  • Output: 1490 nm, 1310 nm, and other specified wavelengths for downstream signals.

• Number of Channels:

  • 19 input channels.

  • 16 output channels.

• Optical Input Power:

  • Minimum: -10 dBm

  • Maximum: +10 dBm

• Optical Output Power:

  • Minimum: +18.8 dBm

  • Maximum: +19dBm

• Gain:

  • Typical: 20 dB

  • Maximum: 25 dB

• Noise Figure:

  • Typical: 5 dB

  • Maximum: 6 dB

• Polarization Dependent Loss (PDL): < 0.5 dB

• Polarization Mode Dispersion (PMD): < 0.5 ps

3. Electrical Specifications

• Power Supply:

  • Dual redundant power supply.

  • Input Voltage: 100-240 VAC, 50/60 Hz.

  • DC Voltage: +24 VDC (optional).

• Power Consumption:

  • Typical: 60 W

  • Maximum: 70 W

• Power Supply Redundancy:

  • Automatic switchover in case of primary supply failure.

• Control Interface:

  • RS-232, RS-485, or Ethernet for remote monitoring and control.

  • SNMP v2c/v3 support for network management.

4. Mechanical Specifications

• Dimensions:

  • Height: 1U (44 mm)

  • Width: 19-inch rack-mountable (482.6 mm)

  • Depth: 300 mm

• Weight:

  • Net Weight: 6 kg

  • Gross Weight: 7 kg (with packaging)

• Cooling:

  • Fanless design or integrated fans for thermal management.

• Operating Temperature:

  • 0C to +50C

• Storage Temperature:

  • -20C to +70C

• Relative Humidity:

  • 5% to 95% (non-condensing)

5. Pump Laser Specifications

• Pump Laser Type: JDSU High-Power Pump Laser Module

• Pump Wavelength: 980 nm or 1480 nm (as per configuration)

• Pump Power:

  • Typical: 300 mW

  • Maximum: 500 mW

• Pump Redundancy:

  • Dual pump configuration for increased reliability.

• Pump Lifetime:

  • 100,000 hours (MTBF)

6. Safety and Compliance

• Safety Standards:

  • Compliant with IEC 60825-1 (Laser Safety)

  • CE, RoHS, and FCC compliant.

• EMC Standards:

  • EN 55022 (Emissions)

  • EN 55024 (Immunity)

• Environmental Compliance:

  • RoHS compliant (Restriction of Hazardous Substances)

7. Reliability and Maintenance

• Mean Time Between Failures (MTBF): > 100,000 hours

• Mean Time To Repair (MTTR): < 2 hours

• Alarm Indicators:

  • Visual and remote alarm indicators for power failure, pump failure, and signal loss.

• Maintenance:

  • Hot-swappable modules for easy maintenance and replacement.

8. Ordering Information

• Base Unit: PON WDM EDFA 19x16 with Dual Supply & Dual Input

• Optional Accessories:

  • Rack-mount kit

  • Additional power supply units

  • Remote monitoring software

• Warranty:

  • 1 years limited warranty covering parts and labor.
